DES SN 5YR Tutorial Part 4: Hubble Diagram from DES 5YR¶
Dark Energy Survey Supernova Program
Tutorial Part 4 Hubble Diagram Contact author: Maria Vincenzi
[1]:
import warnings
warnings.filterwarnings("ignore")
[2]:
import os
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.colors as cols
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
from astropy.cosmology import FlatwCDM, Flatw0waCDM
Best fit cosmologies as reported in our publications (SN only)
[3]:
FlatLCDM_bfit = FlatwCDM(Om0=0.352, H0=70)
FlatwCDM_bfit = FlatwCDM(Om0=0.264, H0=70, w0=-0.8)
Flatw0waCDM_bfit = Flatw0waCDM(Om0=0.495, H0=70, w0=-0.36, wa=-8.8)
Planck_bf = FlatwCDM(Om0=0.315, H0=70)
Let’s load the Hubble Diagram files
[4]:
from dessndr import data, utils
[5]:
HD = pd.read_csv(
os.path.join(data.DES5YRDR_DATA, '4_DISTANCES_COVMAT/DES-SN5YR_HD+MetaData.csv')
)
HD.drop(labels=['CID'], axis=1, inplace=True)
[6]:
HD.head()
[6]:
| CIDint | IDSURVEY | TYPE | zHEL | zHELERR | zCMB | zCMBERR | zHD | zHDERR | VPEC | ... | PROB_SNIRFV19 | PROB_SNNDESCC | PROB_SNNJ17 | PROB_SNNV19 | MU | MUERR_FINAL | PROBCC_BEAMS | biasCor_mu | biasCor_muCOVSCALE | biasCor_muCOVADD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1246275 | 10 | 0 | 0.24651 | 0.001 | 0.24605 | 0.001 | 0.24605 | 0.00160 | 0.0 | ... | 0.8486 | 1.0000 | 0.9999 | 1.0000 | 40.5938 | 0.0968 | 0.0 | 0.0341 | 1.0 | 0.0050 |
| 1 | 1246281 | 10 | 0 | 0.33600 | 0.001 | 0.33549 | 0.001 | 0.33549 | 0.00167 | 0.0 | ... | 1.0000 | 1.0000 | 0.9999 | 1.0000 | 41.2263 | 0.1360 | 0.0 | -0.0492 | 1.0 | 0.0136 |
| 2 | 1246314 | 10 | 0 | 0.38388 | 0.001 | 0.38337 | 0.001 | 0.38337 | 0.00171 | 0.0 | ... | 0.7823 | 0.9993 | 0.9970 | 0.9998 | 41.6383 | 0.2332 | 0.0 | 0.0502 | 1.0 | 0.0348 |
| 3 | 1246527 | 10 | 0 | 0.32184 | 0.001 | 0.32078 | 0.001 | 0.32078 | 0.00166 | 0.0 | ... | 1.0000 | 0.9997 | 0.9998 | 1.0000 | 41.1991 | 0.1503 | 0.0 | -0.0511 | 1.0 | 0.0173 |
| 4 | 1246529 | 10 | 0 | 0.49797 | 0.001 | 0.49677 | 0.001 | 0.49677 | 0.00180 | 0.0 | ... | 0.9407 | 0.9996 | 0.9993 | 1.0000 | 42.1471 | 0.1618 | 0.0 | -0.0485 | 1.0 | 0.0095 |
5 rows × 49 columns
First we are going to remove any constant offset from the Hubble residuals
[7]:
weights = 1./(HD.MUERR_FINAL.values**2)
offset = np.average(
HD.MU.values - FlatwCDM_bfit.distmod(HD.zHD.values).value,
weights=weights
)
HD['myMURES'] = HD.MU.values - FlatwCDM_bfit.distmod(HD.zHD.values).value - offset
We are going to split the sample of DES and non-DES samples, also select the probability column to use
[8]:
des5yr= HD[HD.IDSURVEY==10].copy()
lowz= HD[HD.IDSURVEY!=10]
[9]:
Prob_column = "PROB_SNNV19"
[10]:
def MU_weighted_average(df_grouped):
w = 1./df_grouped.MUERR_FINAL.values**2
avg_, sum_w = np.average(df_grouped.MU.values, weights=w, returned=True)
return avg_
[11]:
def MU_weighted_average_err(df_grouped):
w = 1./df_grouped.MUERR_FINAL.values**2
avg_, sum_w = np.average(df_grouped.MU.values, weights=w, returned=True)
avg_err = np.std(df_grouped.MU.values)/np.sqrt(len(df_grouped.MU.values))
return avg_err
[12]:
def MURES_weighted_average(df_grouped):
w = 1./df_grouped.MUERR_FINAL.values**2
avg_, sum_w = np.average(df_grouped.myMURES.values, weights=w, returned=True)
return avg_
[13]:
def MURES_weighted_average_err(df_grouped):
w = 1./df_grouped.MUERR_FINAL.values**2
avg_, sum_w = np.average(df_grouped.myMURES.values, weights=w, returned=True)
avg_err = np.std(df_grouped.myMURES.values)/np.sqrt(len(df_grouped.myMURES.values))
return avg_err
Set color maps and marker colors to match our paper colors
[14]:
lowz_color='#D04A07'
des_color='#236CA7'
norm = cols.Normalize(-1,1)
colors = [[norm(-1.0), '#b4d7e8'], [norm( 1.0), '#236CA7']]
mycmap = cols.LinearSegmentedColormap.from_list("", colors)
[15]:
fig=plt.figure(figsize=(7.5,5.5))
### Hubble Diagram: Upper panel ###
a1 = plt.subplot2grid((3,1),(0,0),rowspan = 2)
plt.errorbar(des5yr.zHD.values, des5yr.MU.values,
fmt='o', mfc='None', mec='None', ecolor=des_color, alpha=0.2, zorder=0)
im=plt.scatter(des5yr.zHD.values, des5yr.MU.values,
alpha=0.9, cmap=mycmap, c=des5yr[Prob_column].values, zorder=1)
plt.errorbar(lowz.zHD.values, lowz.MU.values,
fmt='o', mfc=lowz_color, mec=lowz_color, ecolor=lowz_color, alpha=0.2)
HD_sorted = HD.sort_values(by='zHD')
nitem = len(HD_sorted)/32
HD_sorted['group'] = HD_sorted.groupby(np.arange(len(HD_sorted.index))//nitem,axis=0).ngroup() + 1
# select equally populated redshift bins
mask_des = (HD_sorted.IDSURVEY.values==10) & (HD_sorted.zHD.values>0.1)
des_mean_mu = HD_sorted[mask_des].groupby('group').apply(MU_weighted_average).reset_index(
name='weighted_average_MU')['weighted_average_MU'].values
des_mean_muerr1 = HD_sorted[mask_des].groupby('group').apply(MU_weighted_average_err).reset_index(
name='weighted_average_MUERR')['weighted_average_MUERR'].values
plt.errorbar(HD_sorted[mask_des].groupby('group').mean()['zHD'].values, des_mean_mu,
yerr=des_mean_muerr1,
fmt='o-', color='k', mfc=des_color, lw=1)
mask_lz = HD_sorted.IDSURVEY.values!=10
low_mean_mu = HD_sorted[mask_lz].groupby('group').apply(MU_weighted_average).reset_index(
name='weighted_average_MU')['weighted_average_MU'].values
low_mean_muerr = HD_sorted[mask_lz].groupby('group').apply(MU_weighted_average_err).reset_index(
name='weighted_average_MUERR')['weighted_average_MUERR'].values
plt.errorbar(HD_sorted[mask_lz].groupby('group').mean()['zHD'].values, low_mean_mu,
yerr=low_mean_muerr,
fmt='o-', color='k', mfc=lowz_color, lw=1)
plt.xscale('log')
plt.xlim(0.023, 1.2)
a1.set_ylabel(r'Distance modulus $\mu$',fontsize=17)
plt.xticks([0.03,0.1,1],[' ',' ',' '])
plt.ylim(34.6,45)
plt.text(0.025,43.5, r'CfA/CSP + Foundation sample (%i SNe Ia)'%len(lowz), color=lowz_color, fontsize=12)
plt.text(0.025,42.3, 'DES-SN (%s SNe Ia)'%(len(des5yr)), color=des_color, fontsize=12)
cbar_ax = fig.add_axes([0.92, 0.13, 0.03, 0.75])
fig.colorbar(im, cax=cbar_ax, label=r'$P_{Ia}$ from SuperNNova')
### Hubble Residuals (Lowers panel) ###
#######################################
a2 = plt.subplot2grid((3,1),(2,0), rowspan = 1)
plt.errorbar(des5yr.zHD.values, des5yr.myMURES.values,
fmt='o', mfc=des_color, mec=des_color, ecolor=des_color, alpha=0.05)
im=plt.scatter(des5yr.zHD.values, des5yr.myMURES.values,
alpha=0.05, cmap=mycmap, c=des5yr[Prob_column].values, zorder=1)
plt.errorbar(lowz.zHD.values, lowz.myMURES.values,
fmt='o', mfc=lowz_color, mec=lowz_color, ecolor=lowz_color, alpha=0.05)
# select equally populated redshift bins
mask_des = (HD_sorted.IDSURVEY.values==10)&(HD_sorted.zHD.values>0.1)
des_mean_mu = HD_sorted[mask_des].groupby('group').apply(MURES_weighted_average).reset_index(
name='weighted_average_MU')['weighted_average_MU'].values
des_mean_muerr = HD_sorted[mask_des].groupby('group').apply(MURES_weighted_average_err).reset_index(
name='weighted_average_MUERR')['weighted_average_MUERR'].values
plt.errorbar(HD_sorted[mask_des].groupby('group').mean()['zHD'].values, des_mean_mu,
yerr=des_mean_muerr,
fmt='o', color='k', mfc=des_color, lw=1)
mask_lz = HD_sorted.IDSURVEY.values!=10
low_mean_mu = HD_sorted[mask_lz].groupby('group').apply(MURES_weighted_average).reset_index(
name='weighted_average_MU')['weighted_average_MU'].values
low_mean_muerr = HD_sorted[mask_lz].groupby('group').apply(MURES_weighted_average_err).reset_index(
name='weighted_average_MUERR')['weighted_average_MUERR'].values
plt.errorbar(HD_sorted[mask_lz].groupby('group').mean()['zHD'].values, low_mean_mu,
yerr=low_mean_muerr,
fmt='o', color='k', mfc=lowz_color, lw=1)
# Plot best fit cosmologies and compare
zz = np.linspace(0.01,1.2,200)
cosmo1_diff = FlatLCDM_bfit.distmod(zz).value - FlatwCDM_bfit.distmod(zz).value
plt.plot(zz, cosmo1_diff-np.mean(cosmo1_diff),
'-m', lw=3, label='DES-SN5YR'+"\n"+'(best-fit Flat$\Lambda$CDM)')
cosmo_alternative_diff = Flatw0waCDM_bfit.distmod(zz).value-FlatwCDM_bfit.distmod(zz).value
plt.plot(zz, cosmo_alternative_diff-np.mean(cosmo_alternative_diff),
'-', color='#66ff00', lw=3, label='DES-SN5YR'+"\n"+'(best-fit Flat$w_0 w_a$CDM)')
cosmo_alternative_diff = Planck_bf.distmod(zz).value-FlatwCDM_bfit.distmod(zz).value
plt.plot(zz, cosmo_alternative_diff-np.mean(cosmo_alternative_diff),
'--', color='#008080', lw=2.5, alpha=0.8, label='Planck 2020'+"\n"+'(best-fit Flat$\Lambda$CDM)')
plt.legend(ncol=3, framealpha=1, loc=(0.001,0.01), fontsize=9)
plt.hlines(0, 0, 1.2, lw=0.7, linestyle='-', color='k')
plt.xticks([0.03,0.1,1],['0.03','0.1','1'])
plt.ylim(-0.17,0.1)
plt.xlim(0.023, 1.2)
plt.xscale('log')
a2.set_xlabel('Redshift',fontsize=20)
a2.set_ylabel('Residuals from\n best fit Flat$w$CDM',fontsize=14)
plt.subplots_adjust(hspace=0.05)
#fig.savefig('HD_5yr_KeyPaper.pdf', bbox_inches='tight')

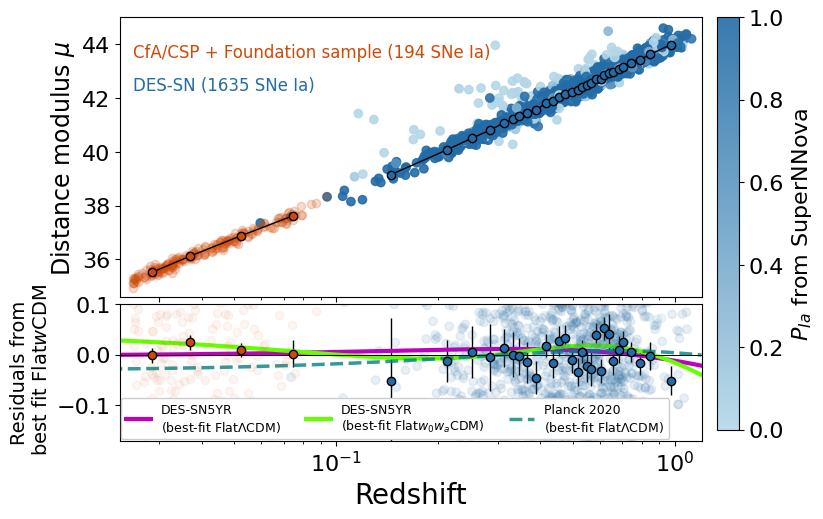

plt.show()
plt.close(fig)
